Model Whirlpool C2257^0 GAS COOK-TOP – Common Parts & Diagrams
02 - MAIN TOP
03 - BURNER

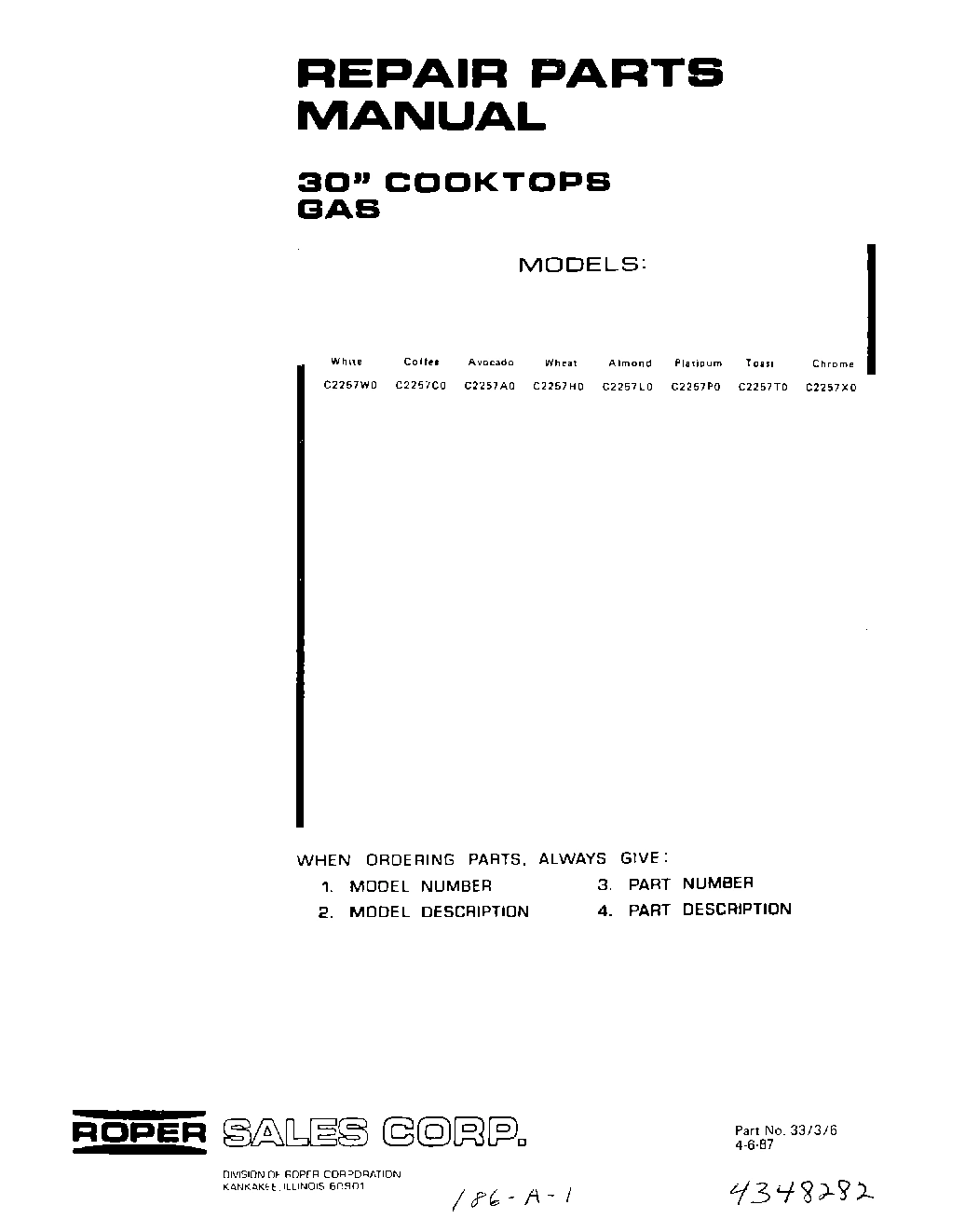

01 - COVER
Common parts from model Whirlpool C2257^0 GAS COOK-TOP
1
Top Grate WPL 316786 Contact Us For Availability
1
Air Shutter WPL 327198 Contact Us For Availability
2
Aeration Pan WPL 330427 Contact Us For Availability
2
Burner-Top Asm (Right Front & Rear) WPL 330410 Contact Us For Availability
3
Screw 6-32x1/4`` WPL 72055 Contact Us For Availability
3
Top Pilot Shield WPL 296183 Contact Us For Availability
4
Hex Nut WPL 239764 Contact Us For Availability
4
Burner-Top Asm (Left Rear) WPL 330412 Contact Us For Availability
5
Hinge-Main Top WPL 330421 Contact Us For Availability
5
Burner-Top Asm (Left Front) WPL 330411 Contact Us For Availability
6
Screw 8-32x1/4`` WPL 322183 Contact Us For Availability
6
Pilot Cup WPL 308292 Contact Us For Availability
7
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
8
Burner Box Shield WPL 323348 Contact Us For Availability
8
Top Burner Support WPL 330807 Contact Us For Availability
9
Burner Box WPL 331923 Contact Us For Availability
9
Pilot w/Filter WPL 323912 Contact Us For Availability
10
Main Top Support Rod WPL 330422 Contact Us For Availability
10
Gas Valve WPL 330407 Contact Us For Availability
11
Clip WPL 285945 Contact Us For Availability
11
Gasket WPL 313563 Contact Us For Availability
12
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
13
Main Top Catch WPL 71003 Contact Us For Availability
13
Manifold Pipe WPL 330808 Contact Us For Availability
14
Control Panel WPL 330809 Contact Us For Availability
14
Screw WPL 323914 Contact Us For Availability
15
Gas Valve Knob WPL 329297 Contact Us For Availability
15
Screw 1/4``-20 WPL 311455 Contact Us For Availability
16
Screw 6-32x3/8`` WPL 105667 Contact Us For Availability
16
Gasket WPL 311692 Contact Us For Availability
17
Main Top Strike WPL 24668 Contact Us For Availability
17
Manifold Seal WPL 330408 Contact Us For Availability
18
Main Top (White) WPL 330426 Contact Us For Availability
18
Main Top (Coffee) WPL 330442 Contact Us For Availability
18
Main Top (Platinum) WPL 330443 Contact Us For Availability
18
Main Top (Wheat) WPL 330444 Contact Us For Availability
18
Main Top (Toast) WPL 330445 Contact Us For Availability
18
Main Top (Almond) WPL 330446 Contact Us For Availability
18
Main Top (Avocado) WPL 330813 Contact Us For Availability
18
Main Top (Chrome) WPL 330966 Contact Us For Availability
18
Manifold Seal Retainer WPL 330409 Contact Us For Availability
19
Bezel-Control WPL 330419 Contact Us For Availability
19
Pressure Regulator WPL 324529 Contact Us For Availability
20
Eyelet (1116X0A Models) WPL 79689 Contact Us For Availability
× ![]()
